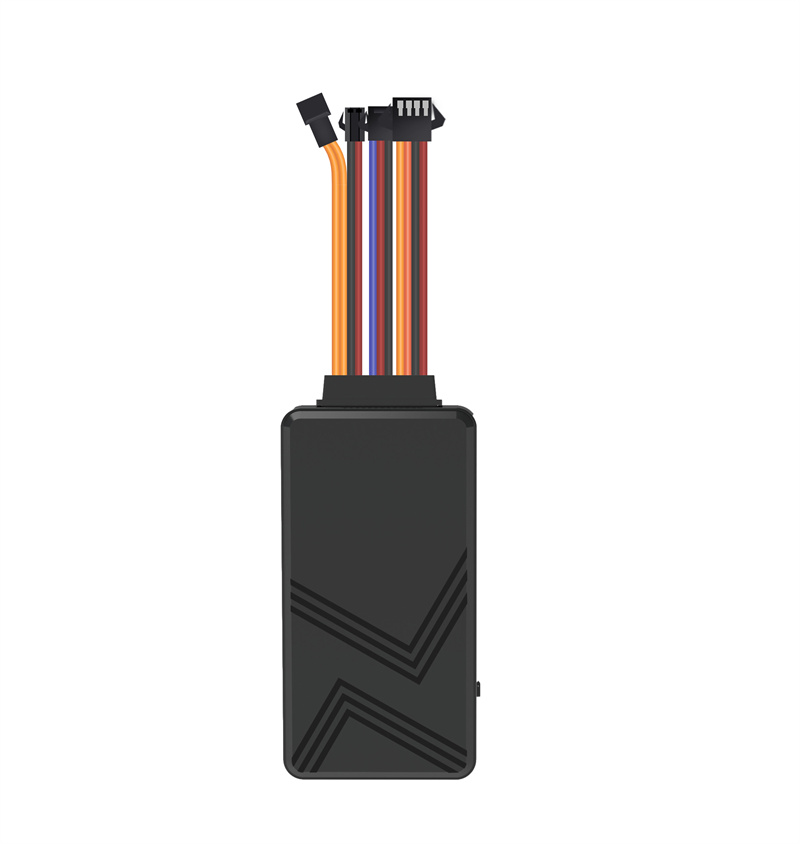

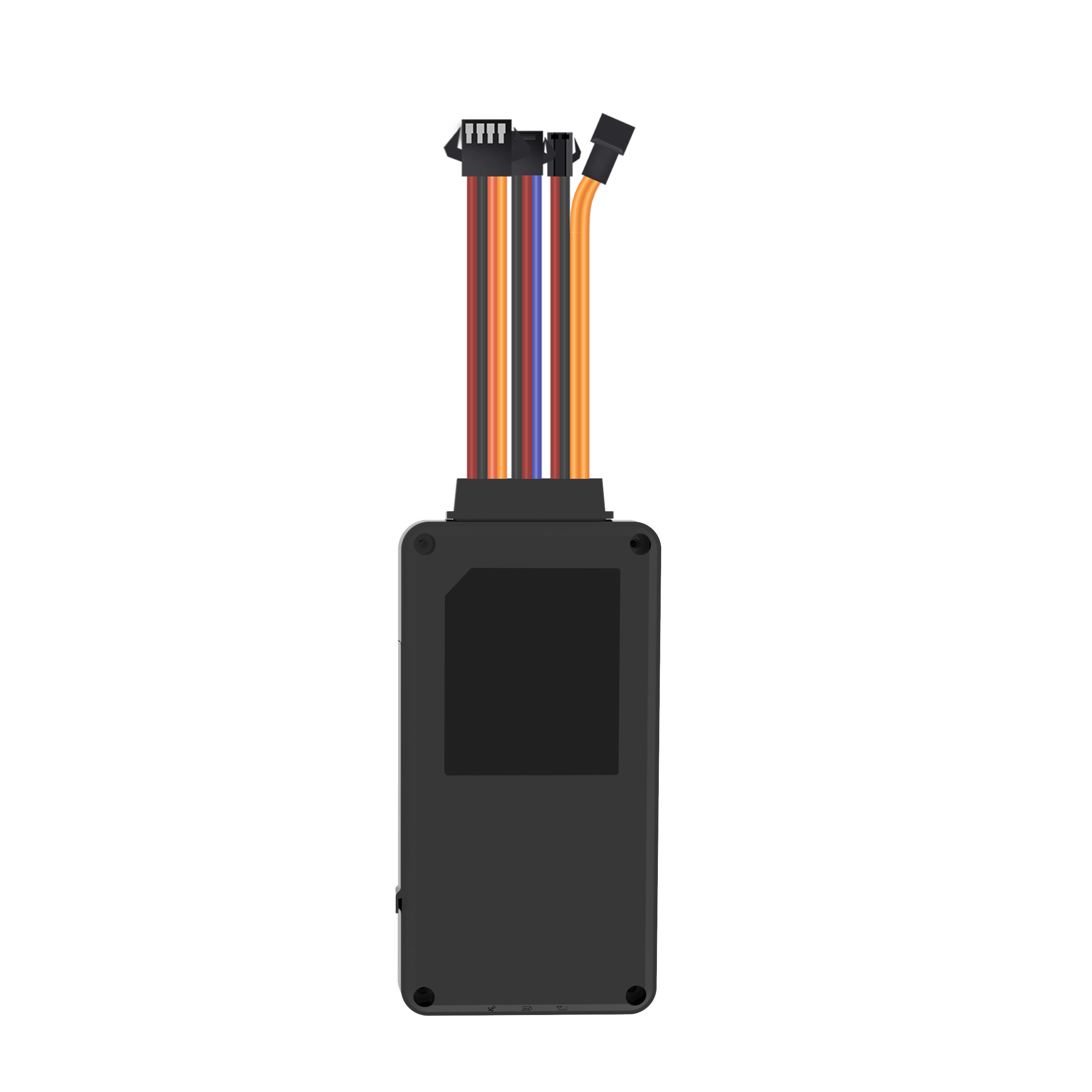

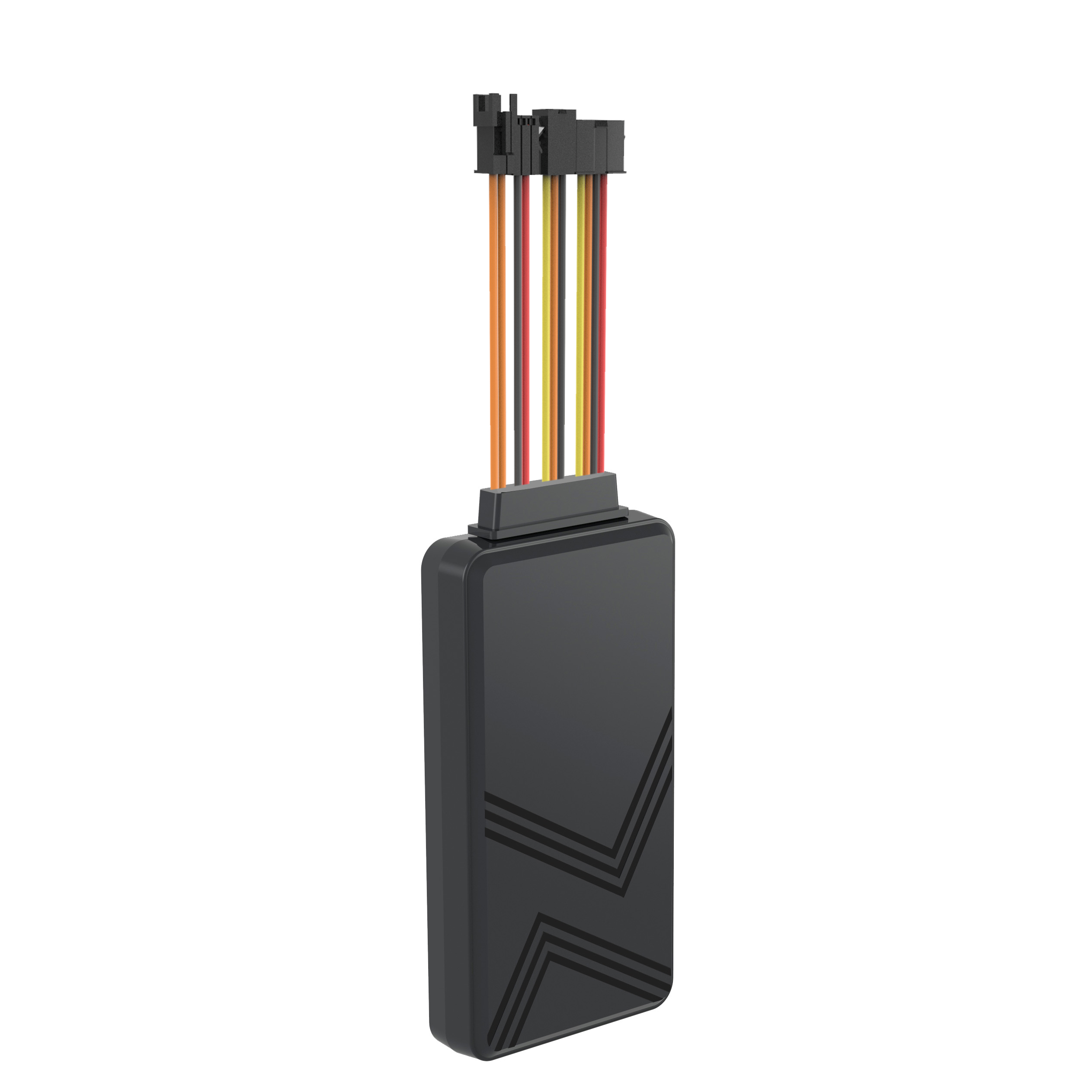

Product Introduction
Specification:
Item
Functions
Y
N
Description
Electricity
Character
Power Supply
●
Backup battery
Work Voltage
●
DC 9V - 75V
Work Current
●
12V/Average 40mA
Sleep Current
●
12V/Lower than 10mA
Battery Capacity
●
180mAh (3.7V Polymer battery) optional
Environment
Character
Work Temp
●
-20℃ - 75℃
Storage Temp
●
-30℃ - 80℃
Work Humidity
●
10%-85% RH
Communication
Character
Module Brand/Chip Model
●
Quectel Mc25
Frequency Bands
●
GSM/EDGE
850/900/1800/1900 MHz
SIM card
●
Standard SIM card
Antenna
●
Built-in antenna
Antenna spec
●
FPC antenna
GPS/BD
Location
Character
Module Brand/Chip Model
●
ZKMicro AT6558R
Location mode
●
BD+GPS
Cold Start
●
Average 32S
Hot Start
●
Average 1S
Sensitivity (tracking)
●
-162 dBm
Antenna
●
Built-in antenna
Antenna spec
●
18mm * 18mm * 4mm
GPS frequency bands
●
L1: 1575.42±1.023MHz
BD frequency bands
●
B1: 1561.098±2.046MHz
Satellite channel
●
50
Location accuracy
●
（1σ）
Timing accuracy
●
（1σ）
Speed measurement accuracy
●
（1σ）
Max acceleration
●
4g
Max speed
●
515m/s
Max height
●
18000m
External
Port
Oil/electronic off
●
1 channel
SOS
●
1 channel
ACC detection input
●
1 channel
TTL serial port
●
1 channel
Microphone
●
1 channel
Shape
Dimension
●
98mm * 53mm * 13mm
Housing Material
●
ABS plastic
IP grade
●
Unit weight
●
59g
Main Features
Product features:
l Precise positioning with accuracy of 5 meters,
l GPS+BDS+LBS location mode
l Wide work voltage: 9~75V
l Functions:
1. ACC detection-ignition status 6. Vibration alarm.
2. Remote cut off-fuel/power 7. Power off alarm.
3. Audio monitoring-with external mic 8. Over Speed alarm.
4. 180mAh internal battery 9. Illegal engine on alarm.
5. Emergency SOS button.
Application:
Insurance industry, enterprise fleet management industry, car manufacturers / 4S shops, individual users, electric new energy fields, passenger vehicles, taxis, rent vehicles, etc.
