Product Introduction
Specification:
Item
Functions
Y
N
Description
Electricity
Character
Power Supply
●
Storage battery
Work Voltage
●
DC 3.4V – 4.5V
Work Current
●
4V/35MA-120MA
Sleep Current
●
4V/2MA-15MA
Battery Capacity
●
5000mAh (3.7V polymer battery)
Environment
Character
Work Temp
●
-20℃ - 75℃
Storage Temp
●
-30℃ - 80℃
Work Humidity
●
5%-95% RH
Communication
Character
Module Brand/Chip Model
●
Quectel MC25
Frequency Bands
●
2G：850/900/1800/1900MHZ
SIM card
●
Micro SIM card
antenna
●
Built-in antenna
GPS/BD
Location
Character
Module Brand/Chip Model
●
AT6558R
Cold Start
●
Average 32S
Hot Start
●
Average 1S
Sensitivity (tracking)
●
-162 dBm
antenna
●
Built-in antenna
External
Port
Microphone input
●
Built-in microphone
Light sensor
●
3.3V serial port
●
1 channel
Shape
Dimension
●
60mm * 49.5mm * 25mm
Housing Material
●
ABS plastic
IP grade
●
IP65
Powerful magnet
●
Optional
Unit weight
●
136g
Main Features

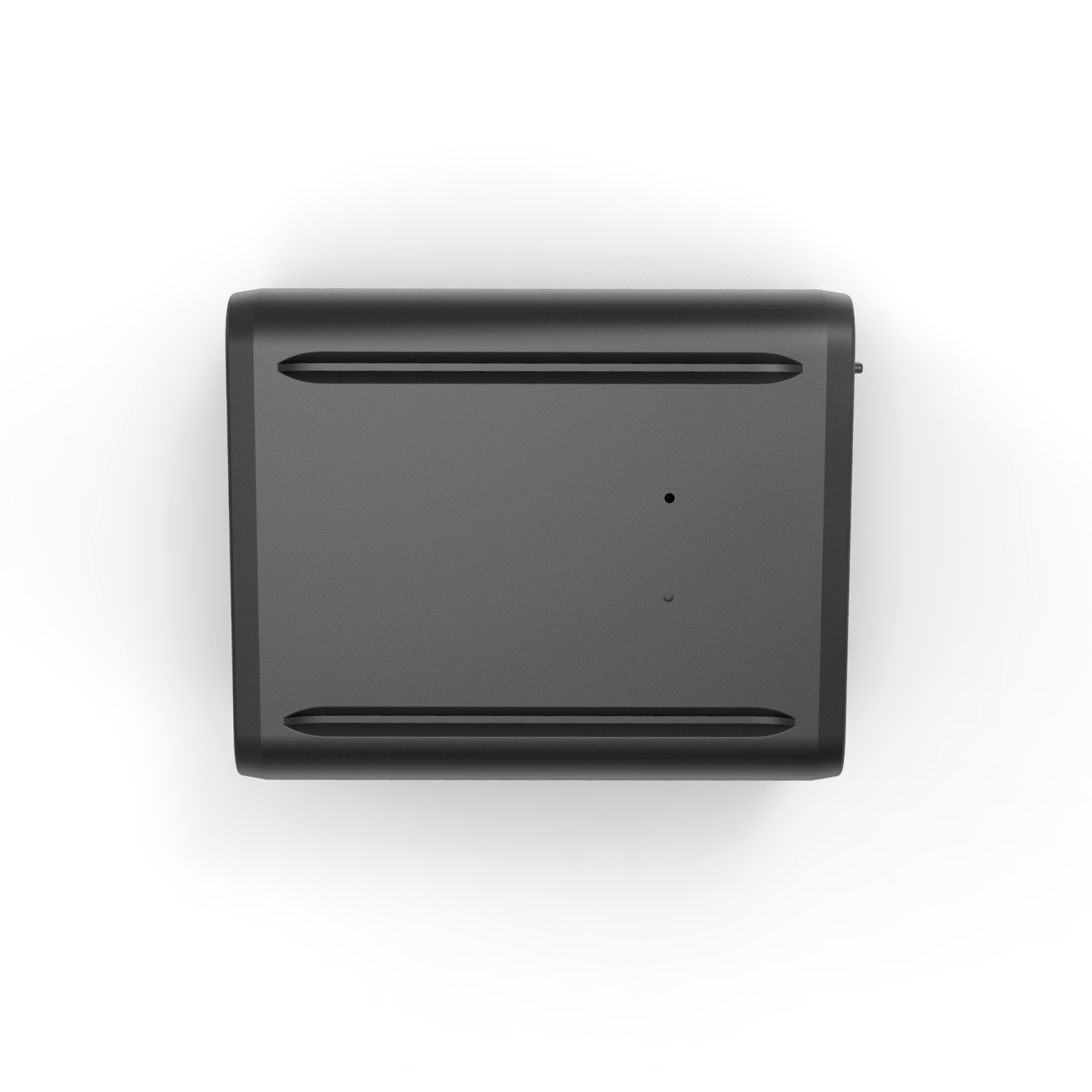

GT20C 2G GPS tracker
Product features:
l Precise positioning with accuracy of 5 meters,
l GPS+BDS+LBS+WIFI (optional) location mode
l Functions: remote voice recording, voice control recording, remote monitor, over speed alarm, movement alarm, vibration alarm, low power alarm.
l Work voltage range: DC3.4V~4.5V.
l Super long standby time, powerful magnet.
Application:
Insurance industry, enterprise fleet industry, car manufacturers / 4S shops, individual users, electric new energy field, passenger vehicles, taxis, leased vehicles, etc.
